14kW Dual Gun AC Charger
- Place of Origin:China
- Brand Name:MSS
- MOQ:1 PCS
- Packaging Details:Carton&Pallets
- Payment Terms:TT/LC
- Supply Ability:10000 kits per month
- Lead Time:Shipped in 10-15 days after payment
Key Features:

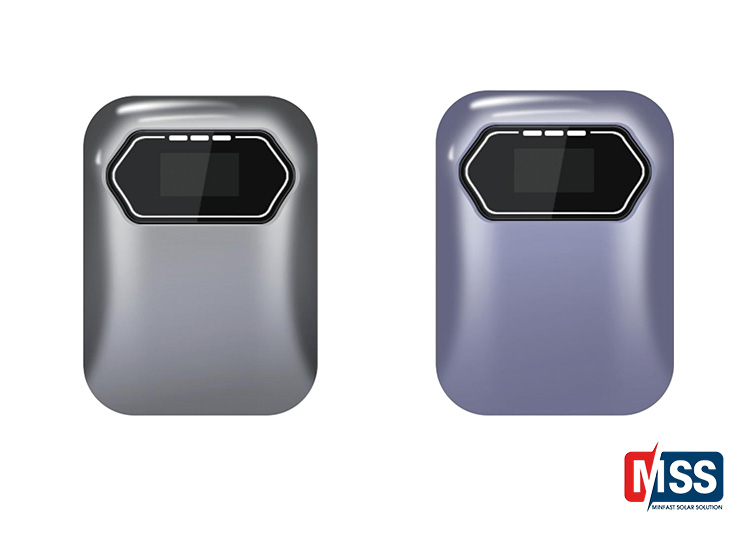

· Wall-mounted dual-gun AC charger for electric vehicles, supporting 7 / 14 kW.
· Dual connectors support GB/T and Type 2 sockets.
· Supports card swipe (RFID) and QR-code start, with remote smart (app) control and a charging status display.
· Multi-layer safety protection including leakage protection; colors shown: Dark Gray, Space Gray.
Specifications:
Parameter | Value |
Supported charging power | 7 / 14 kW |
Input voltage | 220V |
Charging connector | GB/T / Type 2 |
Number of connectors | Dual gun |
Protection rating | IP55 |
Operating temperature | -20°C ~ 50°C |
Accuracy class | Class 1 |
Installation method | Wall-mounted |
Dimensions | 402 x 291 x 127 mm |
Applications: A wall-mounted dual-gun AC charging point for semi-public or commercial sites, allowing two EVs to be charged and managed via RFID card, QR scan or remote app.
