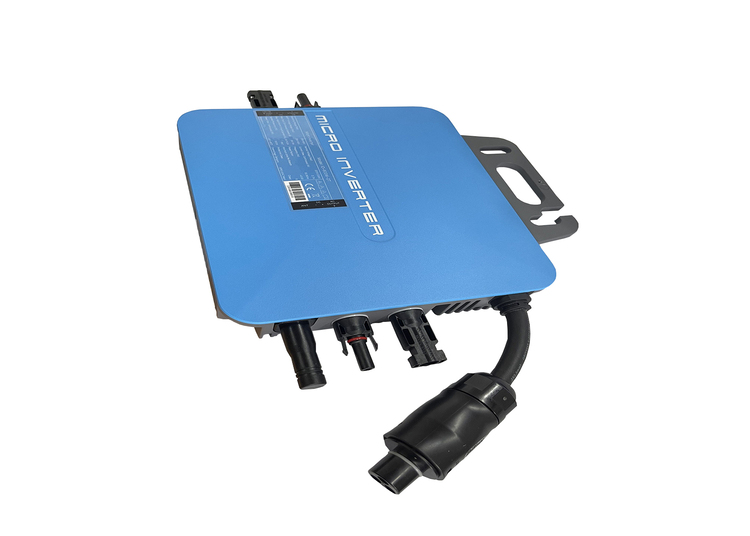

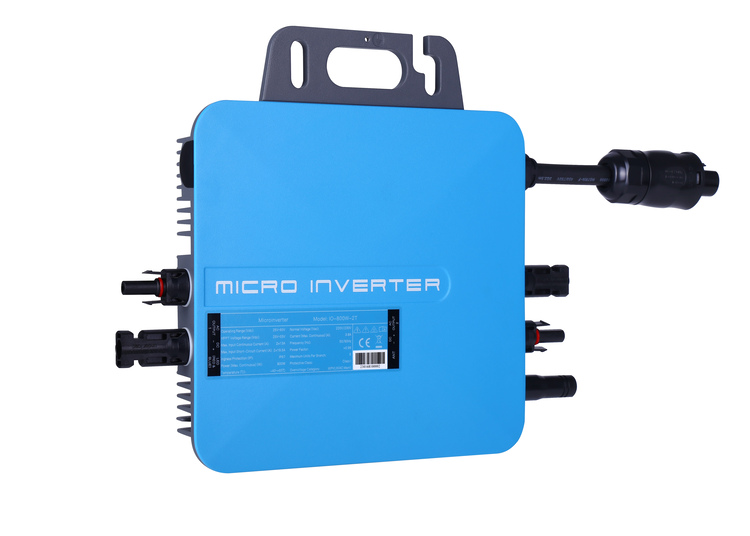

1200-2000W Micro Inverter
- Place of Origin:China
- Brand Name:OEM/ODM
- MOQ:1*20GP
- Packaging Details:3150pcs/20GP
- Payment Terms:TT/LC
- Supply Ability:10000pcs per month
- Lead Time:Shipped in 10-15 days after payment
| Technical Specifications | ||||||
| Model | IO-1200W-4T | IO-1600W-4T | IO-2000W-4T | |||
| Input Data (DC) | ||||||
| Commonly used module power (W) | 210 to 455W (4 Piece) | 210 to 550W+ (4 Pieces) | 210 to 650W+ (4 Pieces) | |||
| Maximum input voltage (V) | 60V | |||||
| MPPT voltage range (V) | 22~55V | |||||
| Start-up voltage (V) | 22V | |||||
| Maximum input current (A) | 4×13A | |||||
| Maximum input short circuit current (A) | 4×19A | |||||
| Number of MPPTs | 4 | |||||
| Number of Inputs per MPPT | 1 | |||||
| Output Data (AC) | ||||||
| Rated output power (VA) | 1200VA | 1600VA | 2000VA | |||
| Rated output current (A) | 5.4A | 5.2A | 7.3A | 7A | 9.1A | 8.7A |
| Nominal output voltage/range (V) | 220V/ 180-275V | 230V/ 180-275V | 220V/ 180-275V | 230V/ 180-275V | 220V/ 180-275V | 230V/ 180-275V |
| Nominal frequency/range (Hz) | 50/48~52Hz or 60/58~62Hz | |||||
| Power factor | >0.99 | |||||
| Total harmonic distortion | < 3% | |||||
| Maximum units per 12 AWG branch² | 4 | 4 | 3 | |||
| Efficiency | ||||||
| Peak efficiency | 96.5% | |||||
| CEC peak efficiency | 95% | |||||
| Nominal MPPT efficiency | 99% | |||||
| Night power consumption (mW) | <50mW | |||||
| Mechanical Data | ||||||
| Ambient temperature range (℃) | -40~65℃ | |||||
| Dimensions (W × H × D mm) | ||||||
| Weight (kg) | ||||||
| Enclosure rating | IP67 | |||||
| Cooling | Cooling Natural convection-No fans | |||||
| Features | ||||||
| Communication | Built-in WiFi/Bluetooth | |||||
| Compliance | IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4, IEC/EN 61000-3-2/-3, EN 50549-1: 2019, VDE-AR-N 4105: 2018 | |||||
| Warranty | 10 years | |||||
